Steel Plates And Profiles

The Application Of Steel In Shipbuilding

The steel plates for shipbuilding are mainly used for ship hull and cabin structure.

Due to the harsh working environment of the ships, the hull will be facing seawater corrosion, strong wind and wave impact. So it requires the steel to have high quality in tensile strength, corrosion resistance and hardness.

Advantages Of Fountom Marine Steel

Absolute Competitive Pricing

With constant partnership with steel manufacturing giants in China, Fountom has supplied annually over 20000 tons marine steel and profiles to global shipyards.

Multiple Shipyard Supplying Experienced

  • Focused on marine steel, whole shipset steel and profiles can be supplied;
  • Minimum plates thickness is 5mm (for width 2450mm), maximum width 3500mm;
  • Pre-treatment supported to reduce import tax.

Fast Delivery

Fountom keeps some steel in stock, and coordinate steel manufacturing groups to meet the deliver in shortest period.

Steel Grades And Conditions Fountom Offers

Fountom is able to supply the marine grade steel plates and profiles with all major shipping class approvals including ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, and RS.

Steel Plates Quick Range Overview

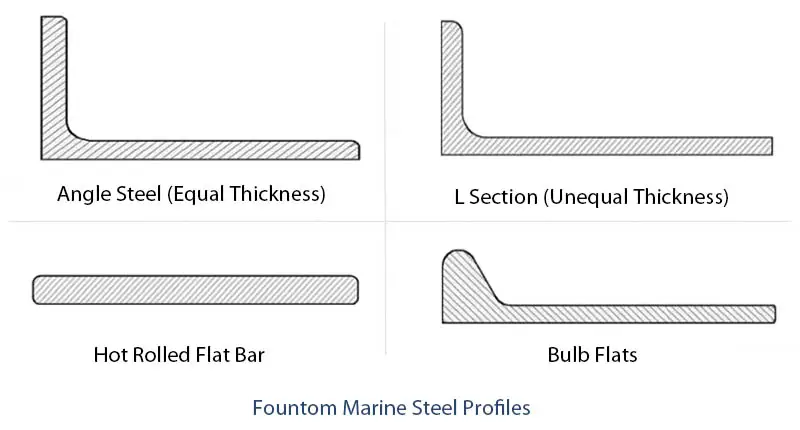

shipbuilding steel profiles

Steel Grades

  • A, B, D, E;
  • AH32, DH32, EH32, AH36, DH36, EH36, AH40, DH40, EH40;
  • F32, FH36, FH40.

Dimension And Tonnage

  • Plate thickness: 5~80 mm (varies width and steel grade);
  • Plate width: 1500~3500 mm (varies with thickness and steel grade);
  • Plate length: 6000 or 12000 mm (or customize length as demands);
  • Order weight: >200 tons for plates, > 5tons for profiles.

  • Click to view detailed steel grade by ship classes

    Ship Class

    Grades Of Steel Plate

    Thickness Range mm

    Delivery Condition

    CCS

    A, B , D

    5-20

    AR

    A, B, D, E, A32, D32, E32, A36, D36, E36, A40, D40, E40

    5-60

    TMCP

    A, B, D, E, A32, D32, E32, A36, D36, E36

    5-80

    N

    BV

    A, B, D

    5-20

    AR

    A, B, D, E, AH32, DH32, EH32, AH36, DH36, EH36, AH40, DH40, EH40

    5-60

    TMCP

    A, B, D, E, AH32, DH32, EH32, AH36, DH36, EH36

    6-80

    N

    DNV

    GL

    A, B, D

    6-20

    AR

    A, B, D

    >20-60

    TMCP

    E, A32, D32, E32, A36, D36, E36, A40, D40, E40 , F32, F36, F40

    6-60

    A, B, D, E, A32, D32, E32, A36, D36, E36

    6-80

    N

    LR

    A, B, D

    5-20

    AR

    A, B, D, E, AH32, DH32, EH32, AH36, DH36, EH36, AH40, DH40, EH40, FH32, FH36, FH40

    5-60

    TMCP

    A, B, D, E, AH32, DH32, EH32, AH36, DH36, EH36

    5-80

    N

    NK

    A, B, D

    5-20

    AR

    A, B, D, E, A32, D32, E32, A36, D36, E36, A40, D40, E40, F32, F36, F40

    5-60

    TMCP

    A, B, D, E, A32, D32, E32, A36, D36, E36

    5-80

    N

    KR

    A, B, D

    6-20

    AR

    A, B, D

    >20-60

    TMCP

    E, AH32, DH32, EH32, AH36, DH36, EH36, AH40, DH40, EH40

    6-60

    FH32, FH36, FH40

    6-60

    A, B, D, E, AH32, DH32, EH32, AH36, DH36, EH36

    6-80

    N

    RINA

    A, B, D

    5-20

    AR

    A, B, D, E, AH32, DH32, EH32, AH36, DH36, EH36, AH40, DH40, EH40, FH32, FH36, FH40

    5-60

    TMCP

    A, B, D, E, AH32, DH32, EH32, AH36, DH36, EH36

    5-80

    N

    ABS

    A, B, D

    5-20

    AR

    A, B, DN, AH32, DH32, AH36, DH36, EH36, FH32, FH36, FH40, EH32, EH36, EH40, AH40, DH40

    5-60



    AN, BN, DN, EN, AH32N, DH32N, EH32N, AH36N, DH36N, EH36N

    5-80

    N

    RS

    A, B , D

    5-20

    AR

    A, B, D, E, A32, D32, E32, A36, D36, E36, R, D40, E40

    5-60

    TMCP

    F32, F36, F40

    6-50

    -

    A, B, D, E, A32, D32, E32, A36, D36, E36

    5-80

    N

Data Required For Enquiry

While requesting quotation for shipset steel plates, the detailed dimensions, delivery condition and pre-treatment suggestions are very necessary to get faster responses.
Fountom made the enquiry sheet to help you list the plates details in need, please fill the sheet or in any other data forms you prefers. RFQs (Requests For Quotations) will be answered in one working day.

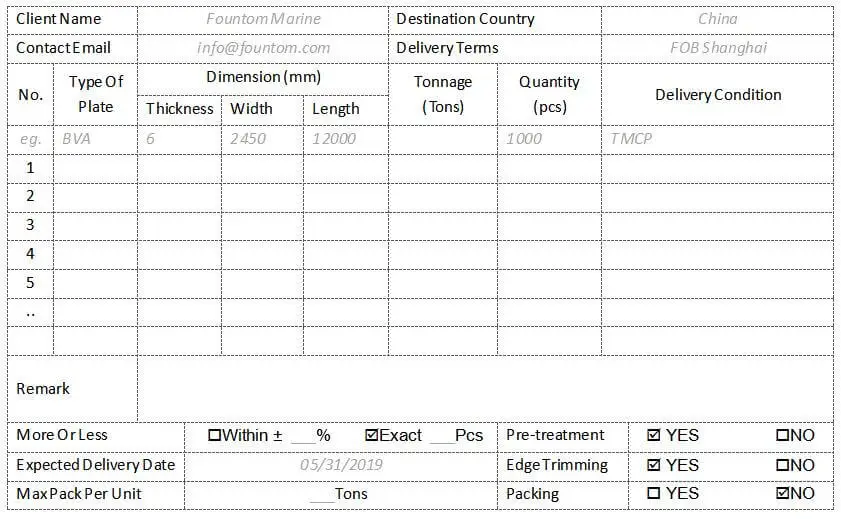

Sample Ordering as below, you may download the doc.

shipbuilding steel ordering
